How to Spot Damage in Pallet Racks Before It Becomes a Real Problem

Spend a day in any warehouse and you’ll see it — rows of pallet racks standing like steel skyscrapers, holding up the whole operation. They’re built tough, sure, but they’re not invincible. Forklifts clip them. Pallets get jammed in too hard. Loads shift. And bit by bit, that punishment adds up.

The tricky part? Damage isn’t always obvious. Sometimes it’s hiding in plain sight until the moment the rack gives out — and by then, it’s too late. I’ve seen it happen, and trust me, you don’t want to be in that situation.

Why Early Checks Save You More Than Money

OSHA and other safety folks will tell you: racks don’t just fail out of nowhere. Something weakens them first. Maybe it’s a dent from a forklift two months ago. Maybe a beam got overloaded last week. Whatever it is, the clock starts ticking once that damage happens.

And when a rack finally gives way? You’re dealing with injuries, crushed stock, and sometimes an operations shutdown. Not worth the risk.

Fixing a small problem today is always cheaper than replacing an entire system tomorrow. If it’s beyond repair, it’s time to get warehouse pallet storage racks for your facility that meet today’s safety standards.

1. Uprights — The Tall, Thin Workhorses

These vertical columns take most of the load, and they’re magnets for impact. A forklift driver cuts the turn too close, and bang — now you’ve got a dent.

What to spot:

  • Steel bent in a way it shouldn’t be
  • Columns that lean instead of standing straight
  • Scrapes where the paint’s gone, showing bare metal underneath

Even small bends can significantly alter the amount of weight the rack can safely hold. Don’t ignore it.

2. Beams That Look Tired

Beams are the horizontal supports that connect the uprights. They’re strong, but constant overloading makes them sag.

Quick check: stand at the aisle end and sight along the beam. Is there a dip? Compare it with the others. If one’s sagging and the rest aren’t, you’ve found trouble. A beam that stays bowed after being unloaded has done its job long enough — swap it out.

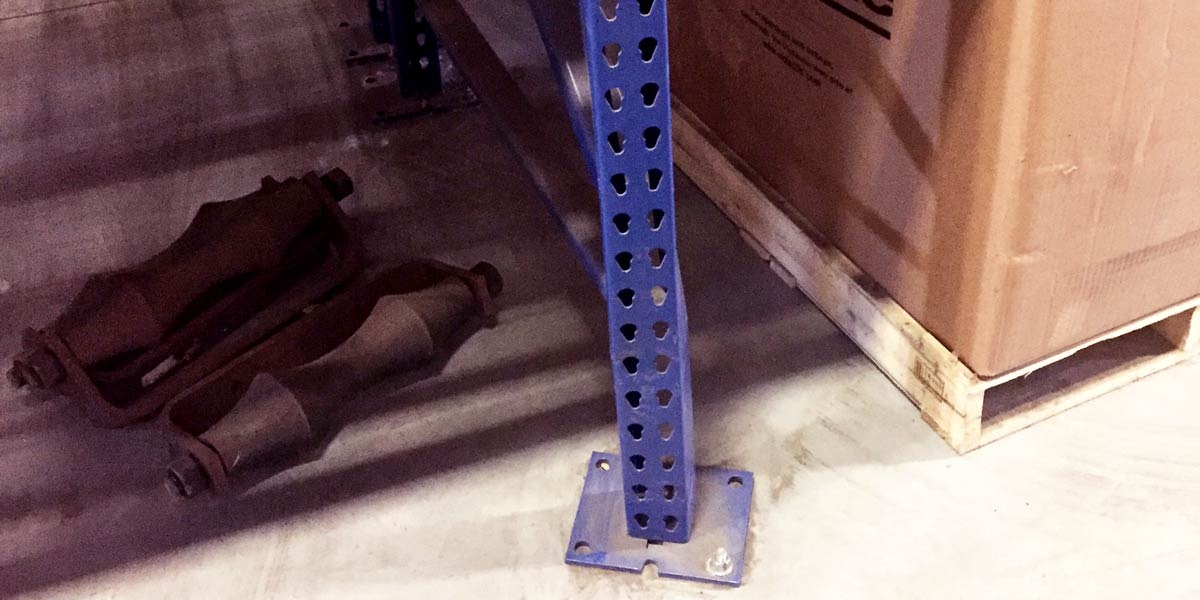

3. Base Plates and Anchors — The Anchors of the Ship

Think of these as the rack’s feet. If they’re not solid, the whole structure’s stability is at risk.

Red flags:

  • Plates are cracked or completely missing
  • Bolts loose enough to rattle, or gone altogether
  • Gaps where the plate should be tight to the floor

It’s an easy thing to check and one of the most important.

4. Clips and Pins — Small but Mighty

These little parts lock the beams in place. Lose one, and the whole beam can shift during loading.

Walk the aisles and check every beam end. If a clip’s missing or bent, replace it — not “later,” not “next week.” And definitely not with a bolt or scrap wire.

5. Rust — The Slow, Sneaky Enemy

Humidity, spills, or even condensation can start corrosion.

Look for flaking paint, orange rust patches, or that powdery residue that means things are breaking down. Treat it early or replace the part before it gets worse.

6. Overloading — Damage You Can’t Always See

The rack might appear fine while quietly straining under excessive weight.

Rules to live by:

  • Stick to the manufacturer’s load ratings
  • Spread weight evenly
  • Avoid letting pallets hang too far over the beams

7. Braces — Keeping the Frame in Shape

Those diagonal and horizontal bars in the upright frames? They stop the rack from twisting or swaying.

If one’s missing, cracked, or bent, the rack’s stability drops fast. Use replacements that match the original — homemade fixes create weak spots.

8. Forklift Damage — The Repeat Offender

Ask any warehouse manager what damages racks the most, and forklifts will likely be at the top of the list. Even at low speed, a bump can bend steel.

Watch for dents, scrapes, or paint transfer at bumper height. Column guards in busy aisles are worth every penny.

9. Listen for Trouble

Odd sounds, such as a pop, a creak, or a metallic ping, often indicate that parts are shifting under stress. Don’t ignore it. Stop loading that area and figure out what’s wrong.

10. Get the Pros In

Your in-house inspections are crucial, but consider bringing in a professional at least once a year. They’ll catch the subtle stuff — tiny beam deflections, stress points you can’t see, compliance issues you didn’t know about.

Even better, create a simple checklist for your supervisors to use on a weekly or monthly basis. The sooner you find a problem, the cheaper it is to fix.

Wrapping It All Up

Spotting rack damage isn’t rocket science, but it does take attention and consistency. Walk your aisles. Train your people to say something when they see something. And don’t wait until “after the rush” to make repairs — that’s how accidents happen.

A well-cared-for rack system can last for years. Ignore the warning signs, and you’re gambling with safety, inventory, and your bottom line. In the warehouse world, prevention is always cheaper — and safer — than the fix.
